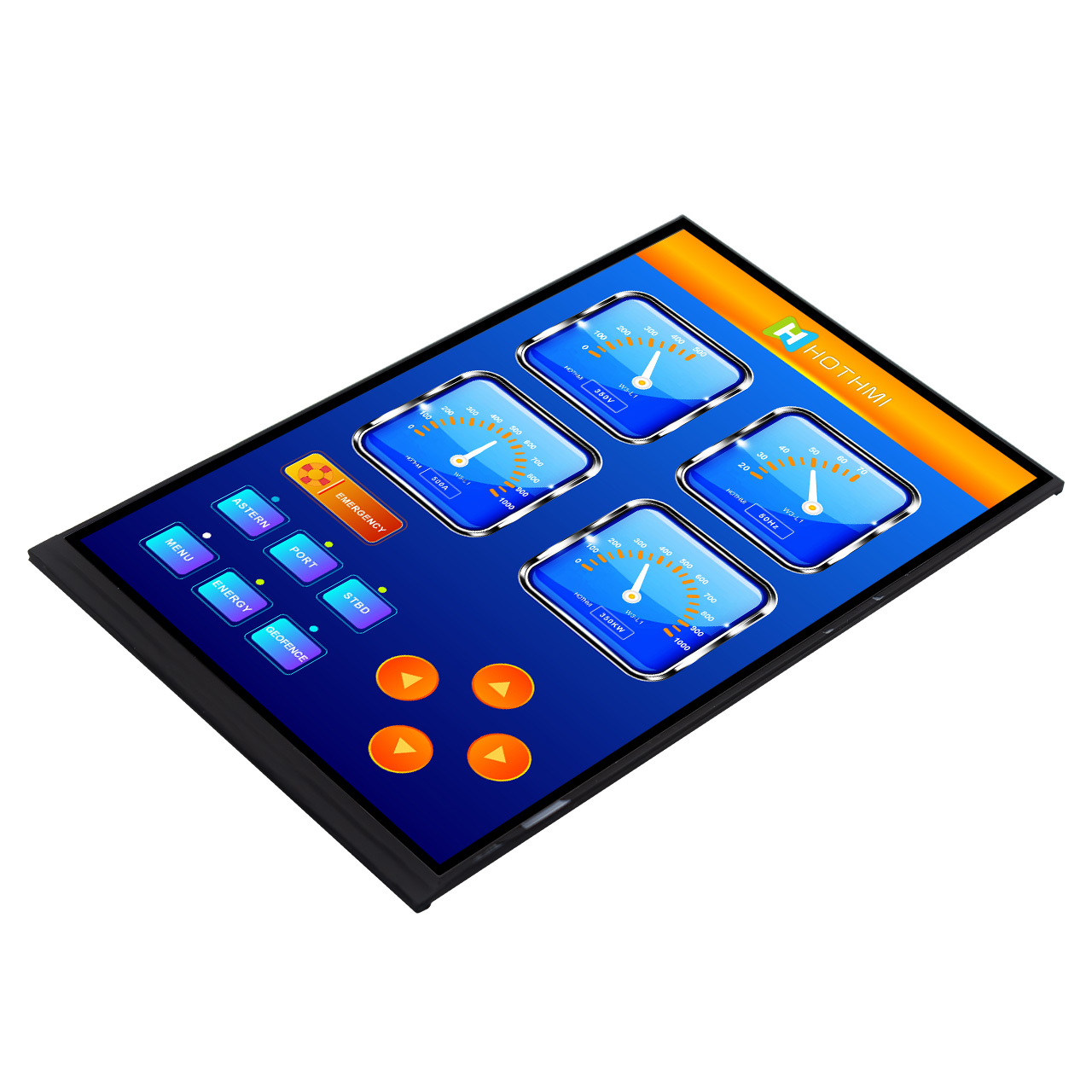

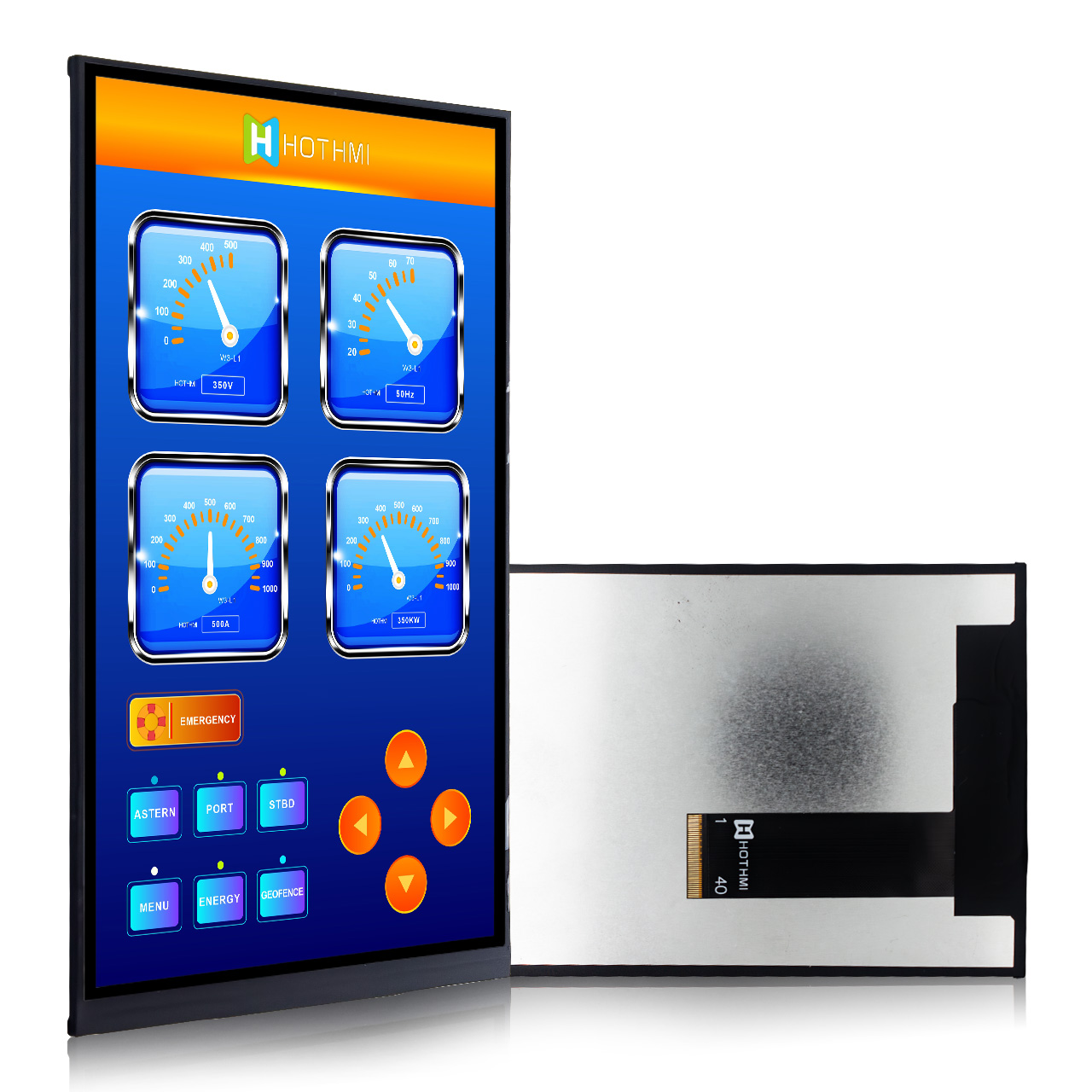

  • 型号: 7英寸 800X1280 分辨率 TFT LCD显示器制造商 TFT-H070B13HDIIL5N40

    类型:TFT竖屏

    显示像素:800x1280

    外形尺寸(mm) :99.79x161.6x2.55

    VA尺寸(mm):7.0

    AA尺寸(mm) :7.0

    有效尺寸mm:94.20x150.72

    应用:家电,车载显示

    视角:全视角

    背光/亮度:550cd/m2

    引脚:40pin

    接口方式:MIPI

    特殊说明:抗静电ESD 8KV

    工作温度:-20~60℃

    供电电压:3.3V

    驱动芯片:ILI9881C

产品叙述

7英寸 800X1280 分辨率 TFT LCD显示器制造商 TFT-H070B13HDIIL5N40

7 英寸显示器 1280 X 800 显示器 TFT LCD 显示器制造商用于电器

TFT-H070B13HDIIL5N40 | 7.0" IPS LCD Display | TFT LCD Display Manufacturer | 800x1280 resolution | -20℃~60℃ | For Appliances


隆重推出 Hotdisplay 公司的 TFT-H070B13HDIIL5N40 7.0" IPS LCD 显示器 - 是需要可靠、高质量小型显示器的任何人的完美解决方案。这款 TFT LCD 显示器分辨率为 800x1280,可提供令人惊叹、清晰和清晰的画面 肯定会给人留下深刻印象的图像。

这款显示器由领先的 TFT LCD 显示器制造商制造,配备 IPS LCD 屏幕,可提供卓越的色彩准确度和宽视角。 它的工作温度范围为 -20℃ 至 60℃,旨在承受最恶劣的条件,非常适合用于电器和其他苛刻环境。

无论您是在市场上购买紧凑型手持设备、数码相机还是便携式显示器,TFT-H070B13HDIIL5N40 都是您的完美选择。 凭借其小巧的尺寸和高分辨率,它提供了一定会超出您期望的无缝用户体验。

立即选择 Hotdisplay 公司的 TFT-H070B13HDIIL5N40,体验性能、可靠性和质量的完美平衡。


General Feature



Item

Standard Value

Unit

Display Size

7.0

Inch

Number of Pixels

800(H)*3(RGB)* 1280(V)

dots

Active Area

94.20x150.72mm

mm

Outline Dimension

99.79x161.6x2.55

mm

Viewing Direction

FULL O'clock

-

Interface

MIPI 4L

-

Driver IC

ILI9881C-

Driver Condition

VCI=3.3V(Typ)

V

Backlight

-

-

Touch Panel

WHITOUT TOUCH


CTP Driver IC

--

Driver Condition

VDD=3.3

V

TFT Operation AT

-20 ~ +60

TFT Storage AT

-30 ~ +80



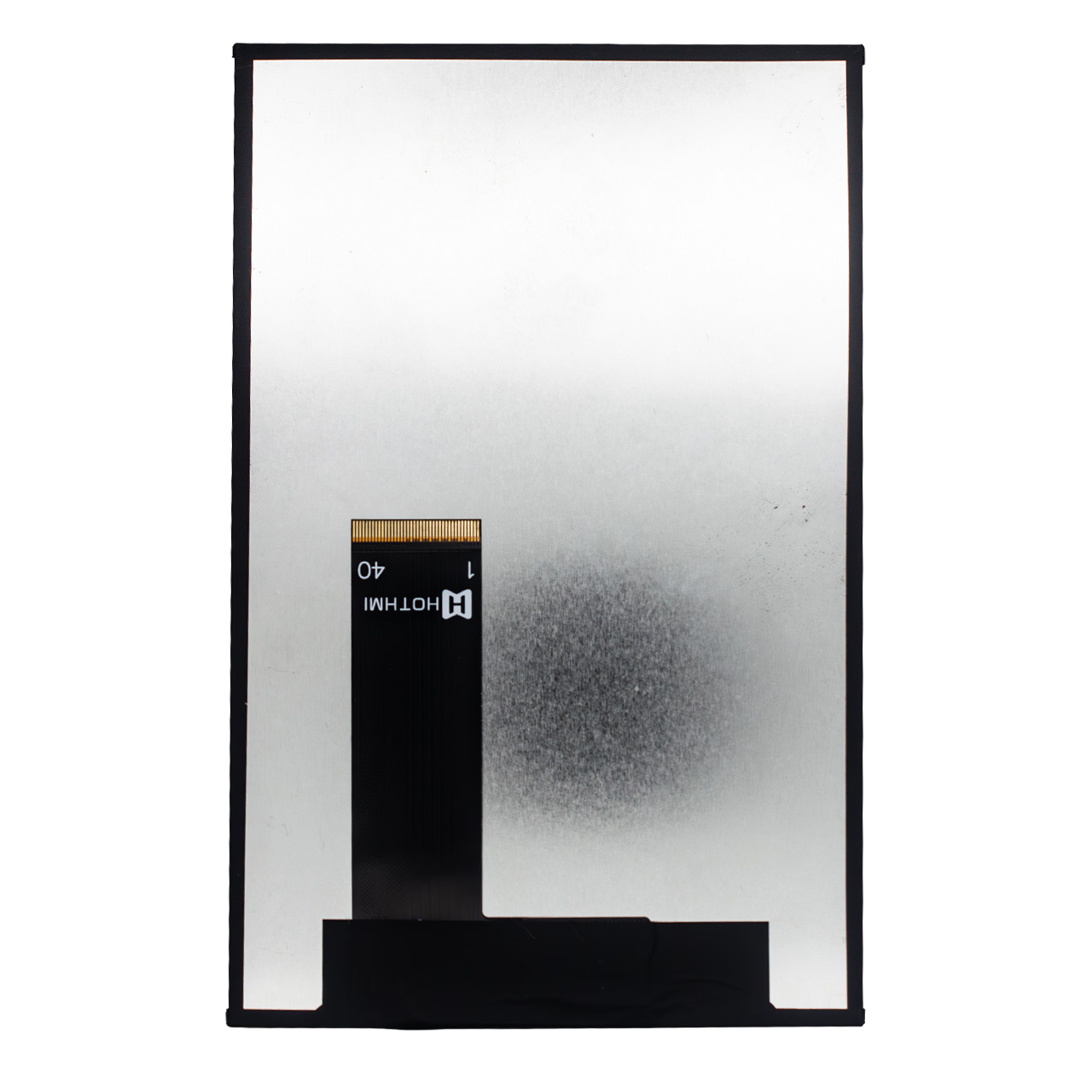

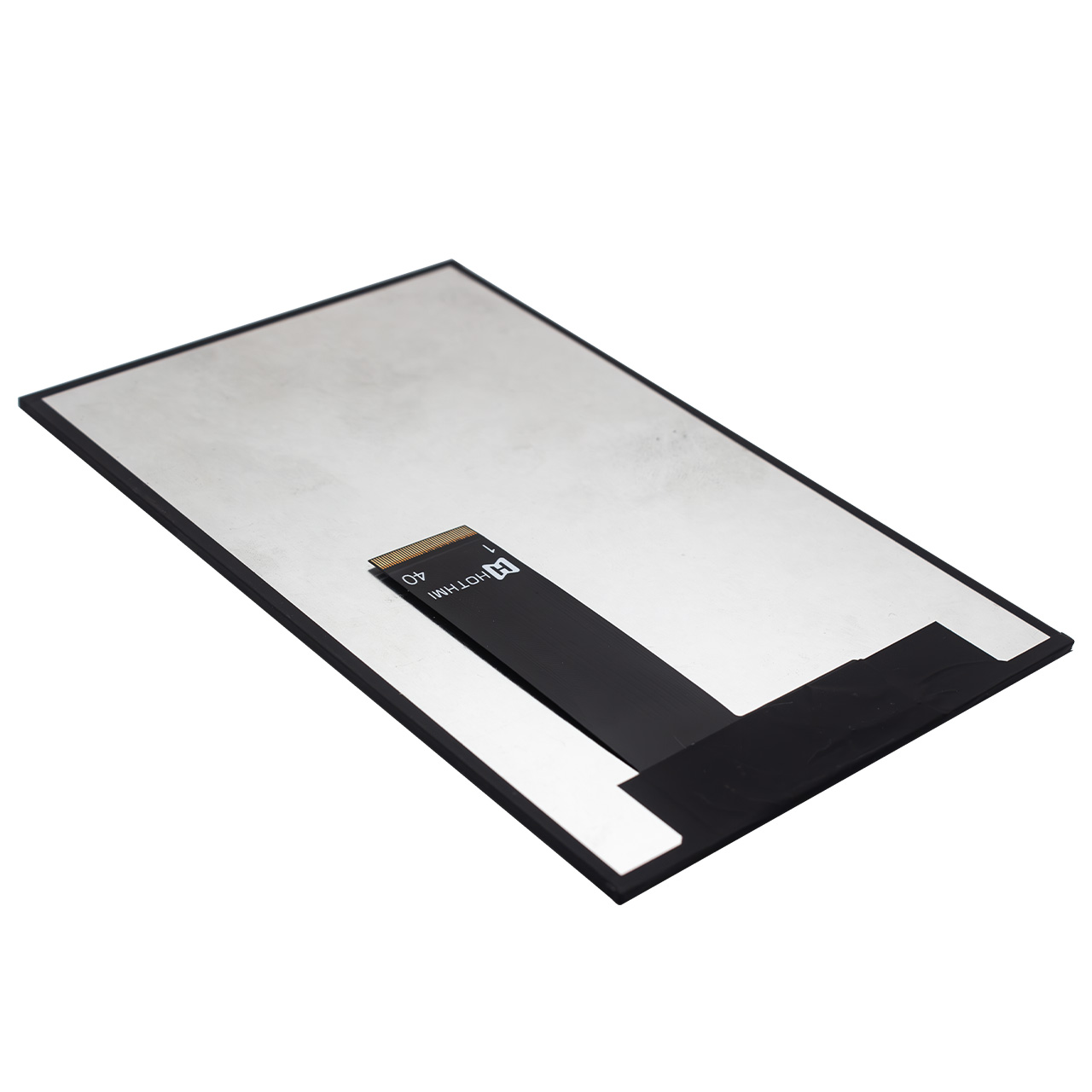

TFT Pin Description



Pin NO.

Symbol

Description

1NC

Not connected

2 ~ 3VCI

Power supply

4NC

Not connected

5RESX

Reset pin

6NC

Not connected

7GND

Power supply ground

8D0N

MIPI Negative data signal (-)

9D0P

MIPI Positive data signal (+)

10GND

Power supply ground

11D1N

MIPI Negative data signal (-)

12D1P

MIPI Positive data signal (+)

13GND

Power supply ground

14DCKN

MIPI Negative clock signal (-)

15DCKP

MIPI Positive clock signal (+)

16GND

Power supply ground

17D2N

MIPI Negative data signal (-)

18D2P

MIPI Positive data signal (+)

19GND

Power supply ground

20D3N

MIPI Negative data signal (-)

21D3P

MIPI Positive data signal (+)

22GND

Power supply ground

23

TE

Tearing effect output pin.Leave the pin open when not in use

24 ~ 30NC

Not connected

31 ~ 32LEDK

LED cathode

33 ~ 38NC

Not connected

39 ~ 40LEDA

LED anode
