产品搜寻
| 勾选 | 型号 | 产品类型 | 显示内容 | 产品图 |
外形尺寸 (mm) |
视域窗口尺寸 (mm) |
显示尺寸 mm/英寸 |
点间距 mm |
视角 | 背光类型或亮度 | 连接方式PIN数 | 接口方式 | 特殊说明 | 工作温度 | 供电电压 | IC芯片型号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

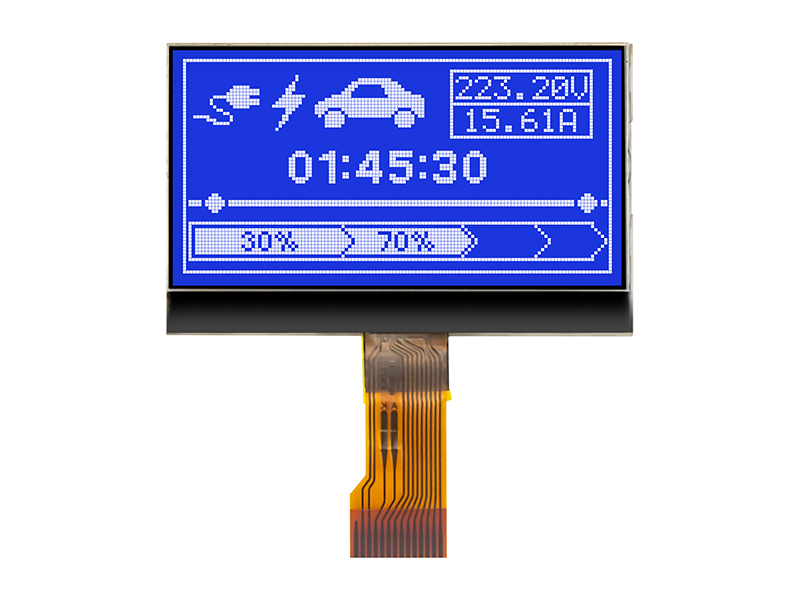

| 128x64 图形COG显示屏/STN(-) COG LCD/ST7565R/Arduino HTG12864-53B-25W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||
| 2.8 寸128x64图形COG LCD/STN(+)显示屏/ST7565R/Arduino HTG12864-53B-11Y-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

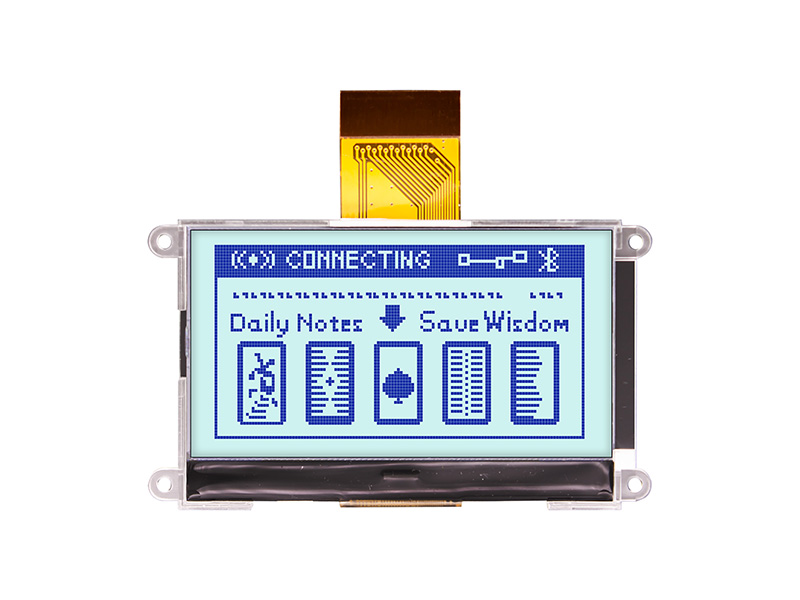

| 128x64点阵液晶COG LCD-灰底蓝字液晶显示屏-ST7565R控制-Arduino HTG12864-53B-11W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | +3.3 V | ST7565R | |||

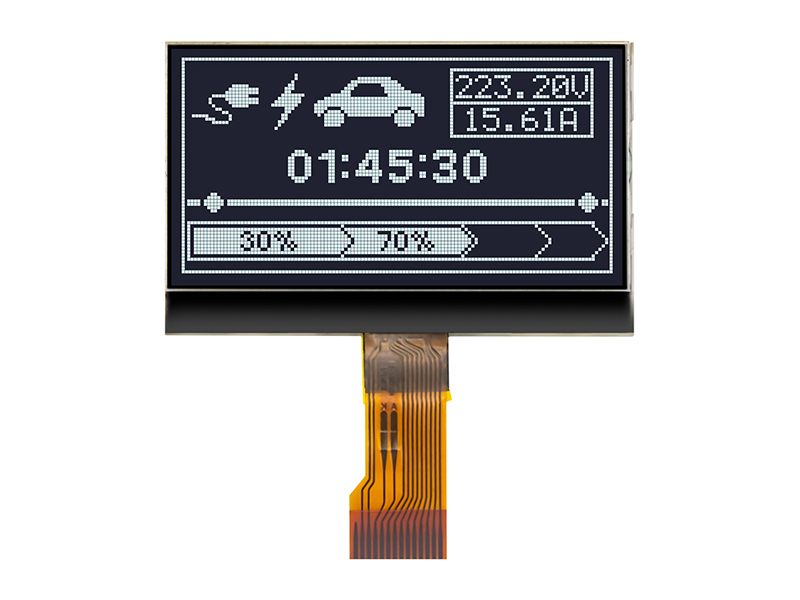

| 128x64 图形COG显示屏/DFSTN(-)黑底白字液晶屏/ST7565R/Arduino HTG12864-53B-41W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||
| 128x64 COG LCD 显示屏/FSTN(+)/ST7565R控制器 HTG12864-53B-31W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

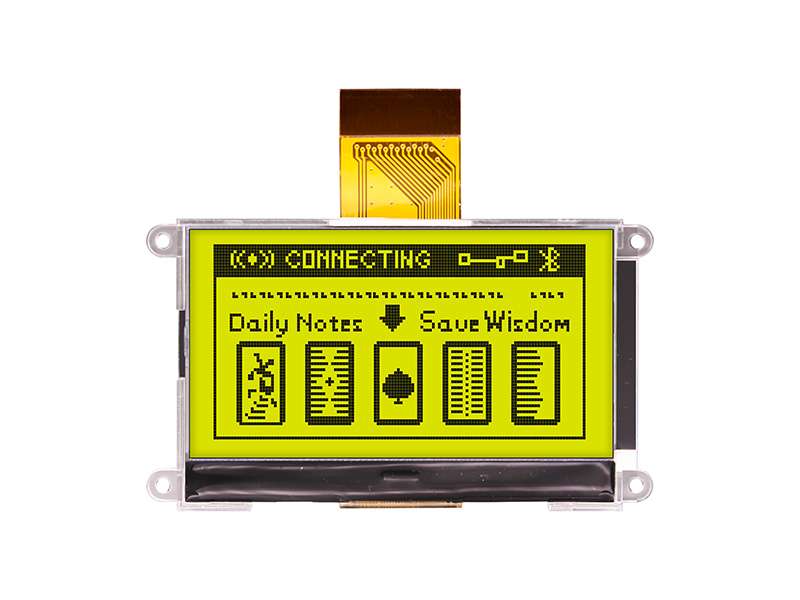

| 2.8 英寸COG显示屏-STN(+)黄绿色LCD 显示模组-ST7565R控制器 HTG12864-53B-01Y-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

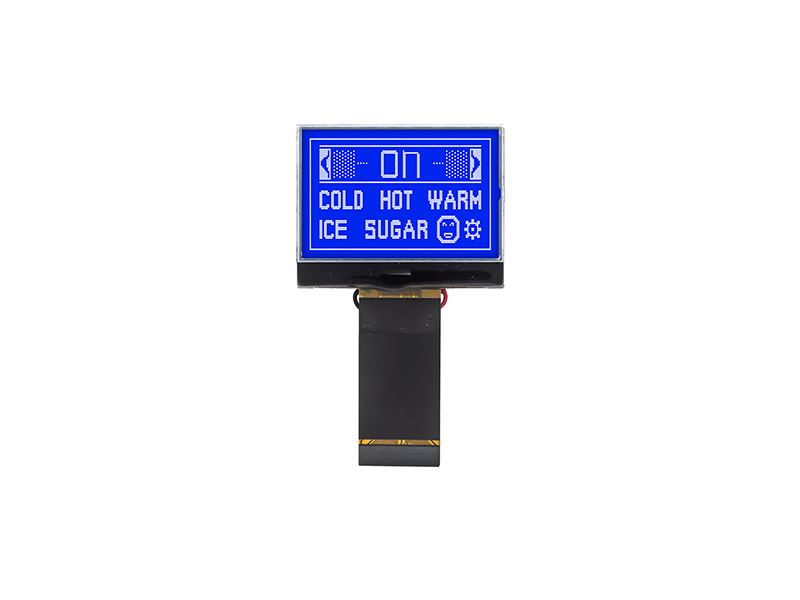

| 1.5英寸128x64 COG LCD液晶显示模块 | STN(-)蓝底白字点阵COG | ST7565R HTG12864C09-25W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

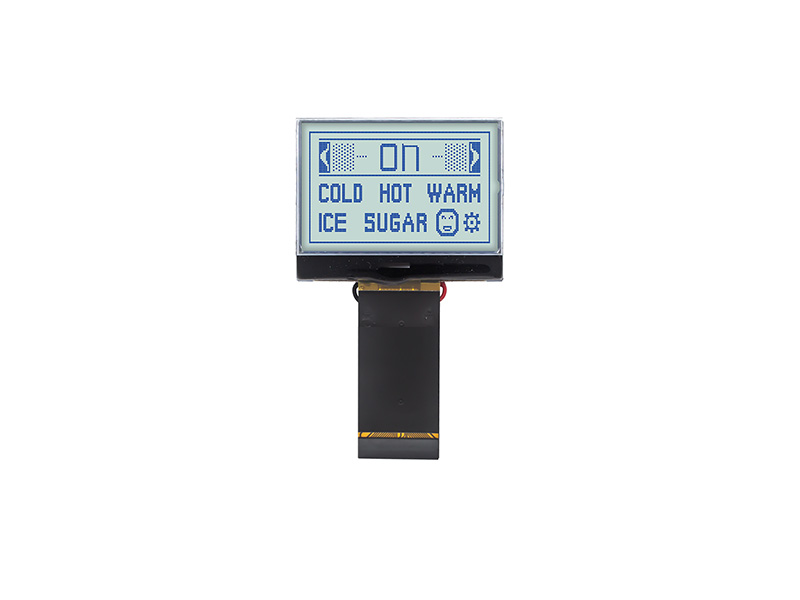

| 128x64 点阵1.5英寸COG LCD显示屏 | STN(+)灰底蓝字COG | ST7565R 3.3V HTG12864C09-11W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

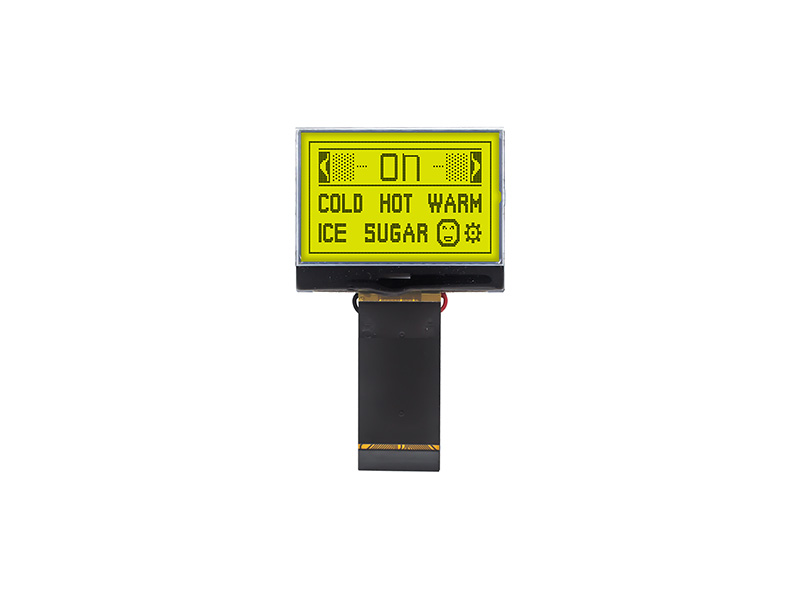

| 1.5英寸128x64 COG LCD液晶显示屏 | STN(+)黄绿色点阵COG | ST7565R HTG12864C09-11Y-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R | ||

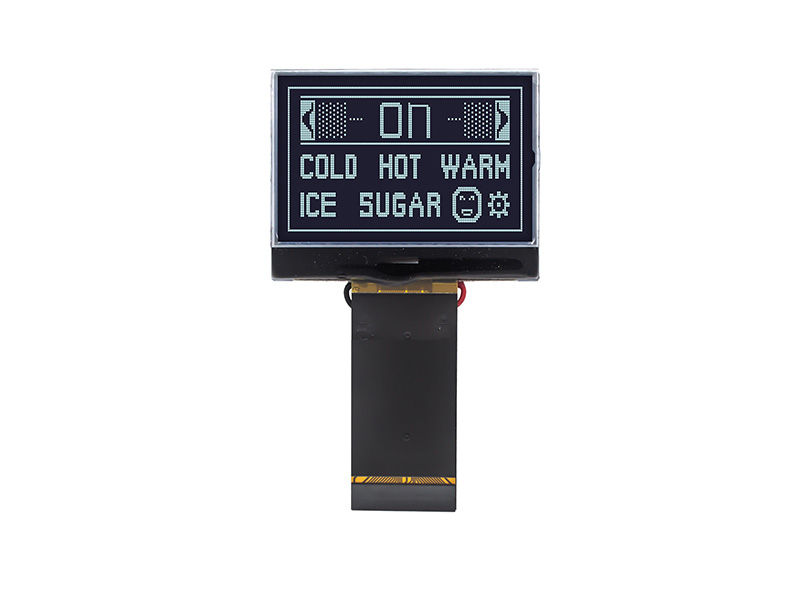

| 128x64 图形液晶显示屏 | DFSTN-黑底白字显示屏 | ST7565R HTG12864C09-41W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7565R |
