产品搜寻
| 勾选 | 型号 | 产品类型 | 显示内容 | 产品图 |
外形尺寸 (mm) |
视域窗口尺寸 (mm) |
显示尺寸 mm/英寸 |
点间距 mm |
视角 | 背光类型或亮度 | 连接方式PIN数 | 接口方式 | 特殊说明 | 工作温度 | 供电电压 | IC芯片型号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

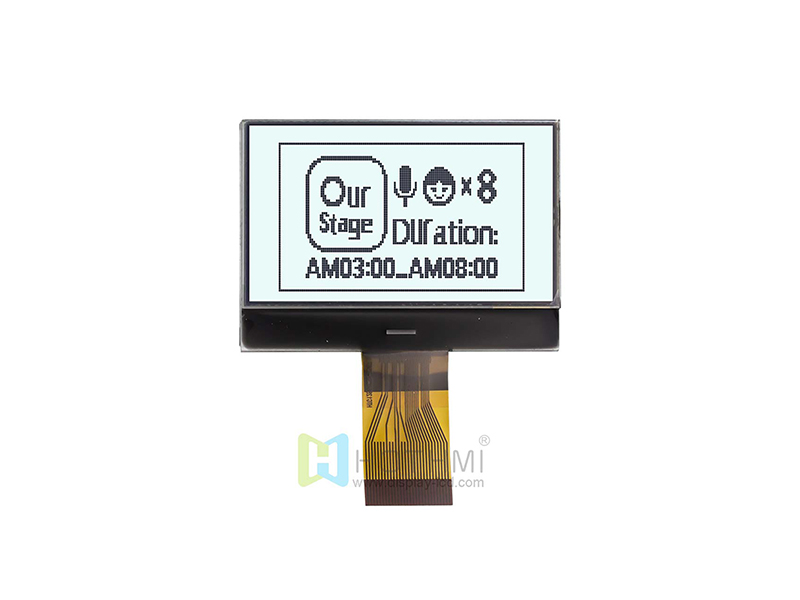

| 2.2 英寸 128x64 图形 COG | FSTN+ | 白底灰字 | SPI | ST7567 | Arduino HTG12864T02A-31W--SPI-FONT | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | FPC-10PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 | ||

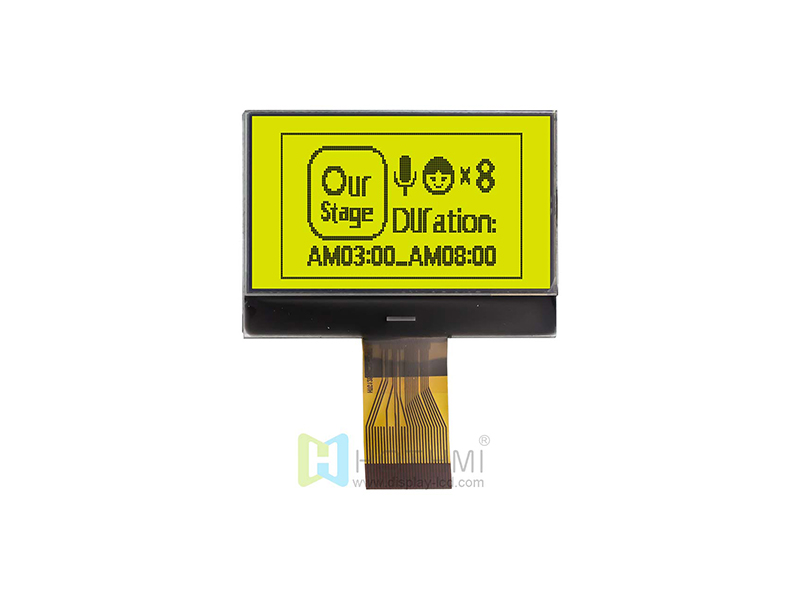

| 2.2 英寸 128x64 图形 COG 液晶屏 | STN+黄绿背光 | SPI | ST7567 | Arduino HTG12864T02A-01Y--SPI-FONT | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | FPC-10PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 | ||
| 2.0英寸128x64 红绿蓝背光COG LCD液晶显示屏/FSTN+LCD/全透性偏光片/Arduino HTG12864-132-35S-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||
| 2.0英寸128x64 COG LCD液晶显示屏/STN-蓝底白字LCD/全透性偏光片/Arduino HTG12864-132-25W-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||
| 2.0英寸128x64 COG LCD液晶显示屏 |STN+ 黄绿色LCD | Arduino HTG12864-132-11Y-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||

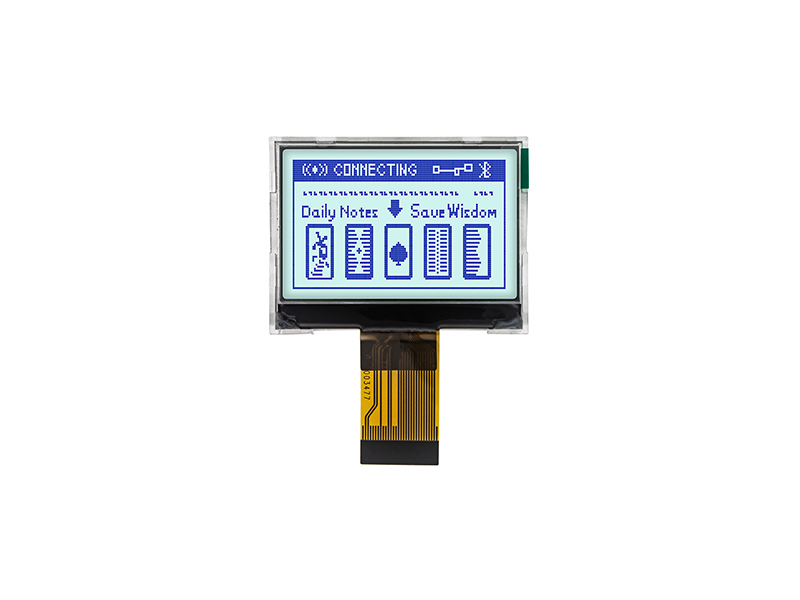

| 2.0英寸128x64 COG LCD液晶显示屏 |STN+ 灰底蓝字LCD | Arduino HTG12864-132-11W-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||

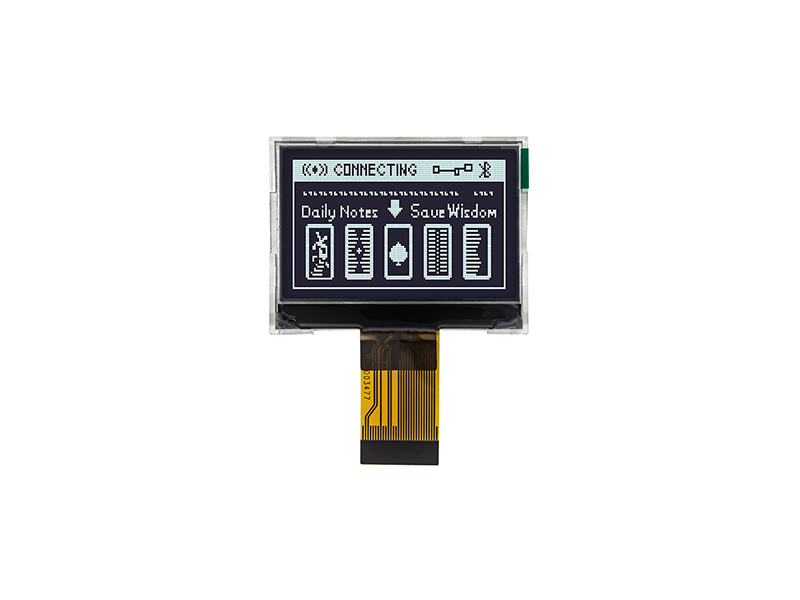

| 2.0英寸128x64COG液晶显示屏 |DFSTN- 黑底白字LCD | Arduino HTG12864-132-41W-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||
| 2.0英寸128x64COG液晶显示屏 | FSTN+ 灰底黑字LCD | 工控显示屏 HTG12864-132-31W-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | 黄绿 | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | |

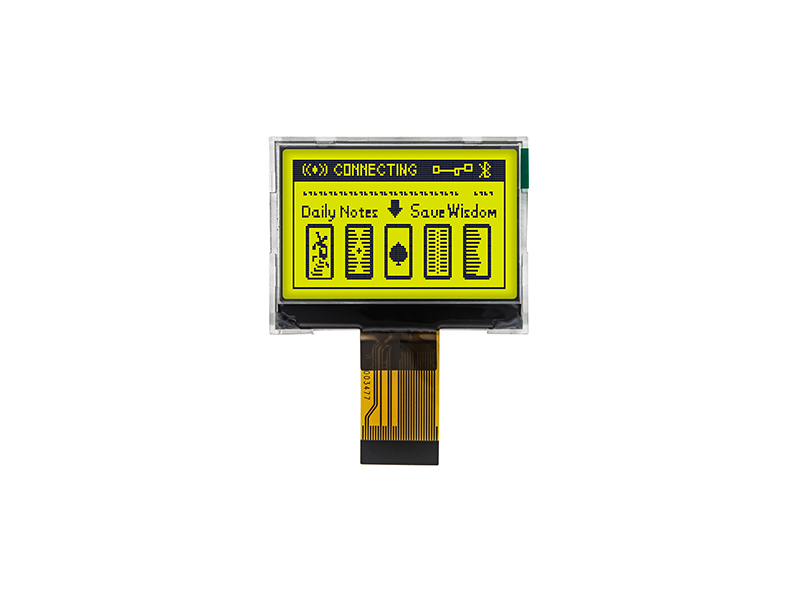

| 2.0英寸128x64黄绿色COG显示屏 | STN+ LCD | 工控显示屏 HTG12864-132-01Y-30C05-V01 | COG | 128x64 |
|
50.2x39.2x6 | 44.0x29.0 | 40.93x24.93 | 0.39x0.32 | 6H | FPC-30PIN | SPI | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567A | ||

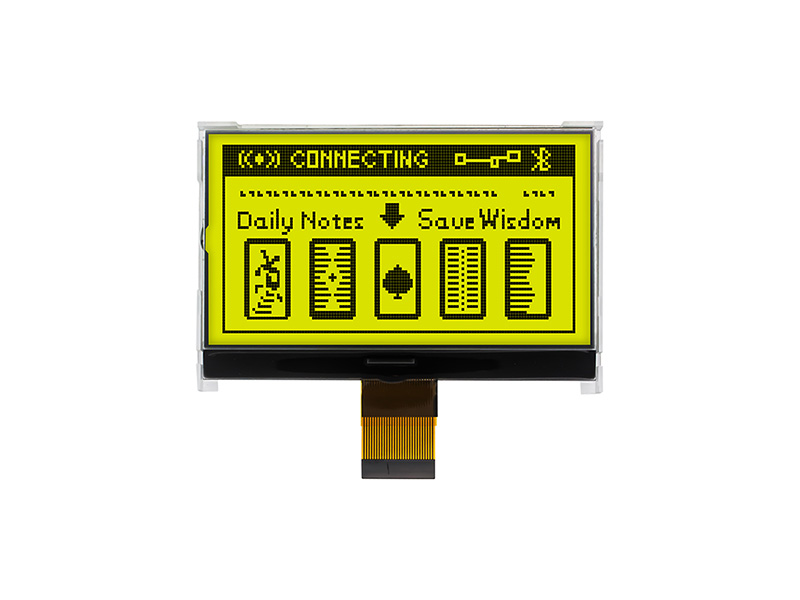

| 3.1 英寸 128x64 图形 COG LCD | STN+ 显示屏，带侧面 Y/G 背光 3.3V HTG12864-125-01Y-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P |
