| 勾选 | 型号 | 产品类型 | 显示内容 | 产品图 |
外形尺寸 (mm) |
视域窗口尺寸 (mm) |
显示尺寸 mm/英寸 |
点间距 mm |
视角 | 背光类型或亮度 | 连接方式PIN数 | 接口方式 | 特殊说明 | 工作温度 | 供电电压 | IC芯片型号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

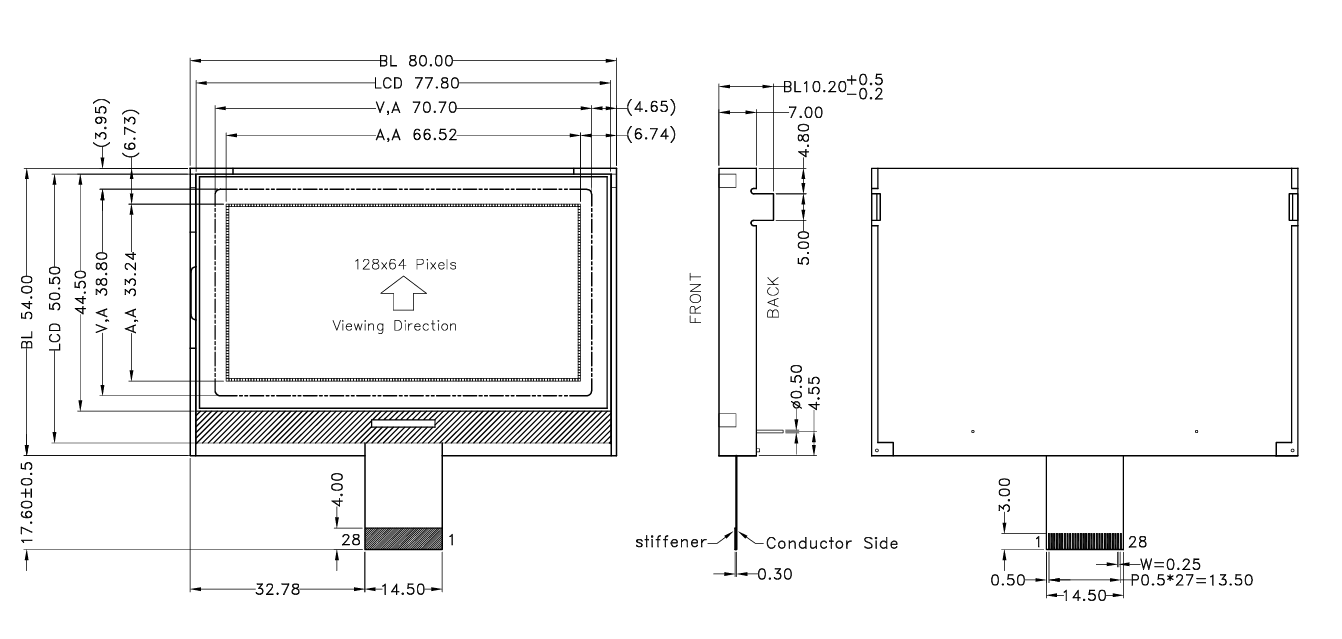

| 3.1英寸128x64 COG LCD | FSTN+ 全透性红绿蓝色LCD | 3.3V | Arduino HTG12864-125-35S-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||

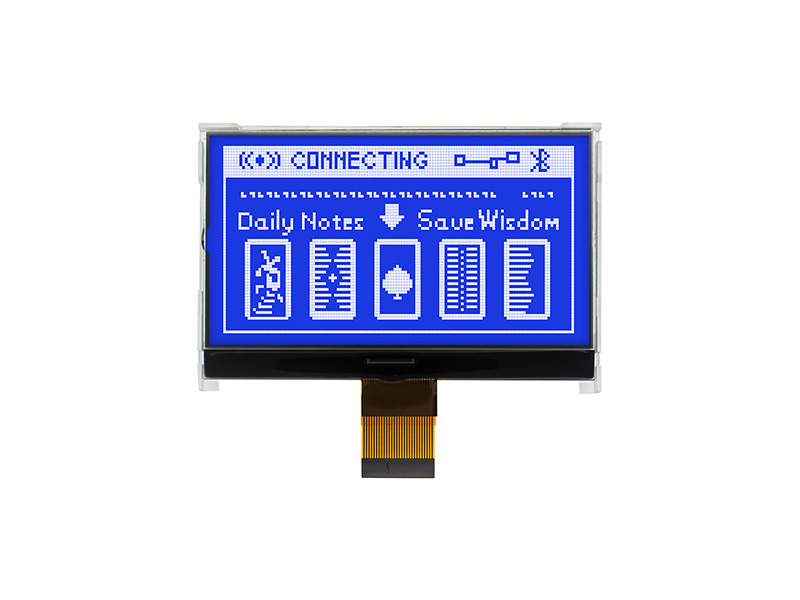

| 3.1英寸128x64 COG LCD | STN-全透性蓝底白字LCD | 3.3V | Arduino HTG12864-125-25W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||

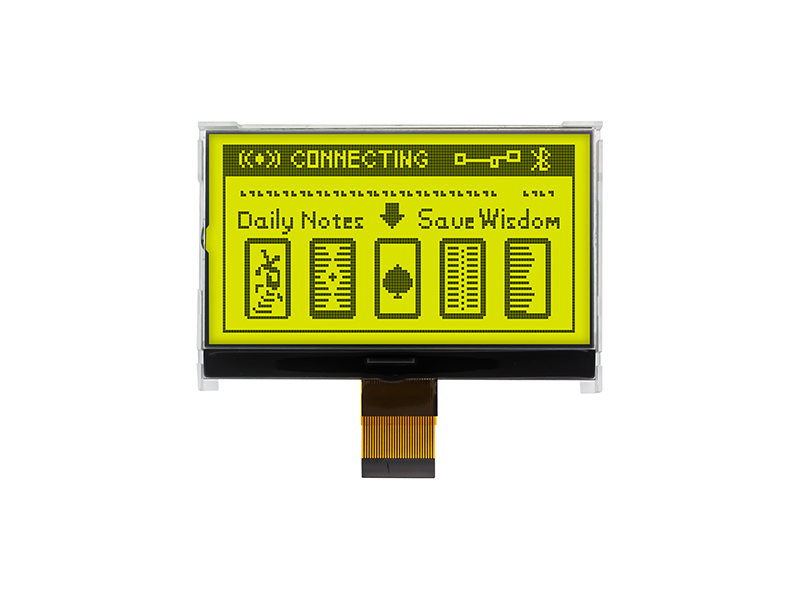

| 3.1英寸128x64 COG LCD | STN+灰底黄绿侧背光液晶显示屏 | 3.3V | Arduino HTG12864-125-11Y-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||

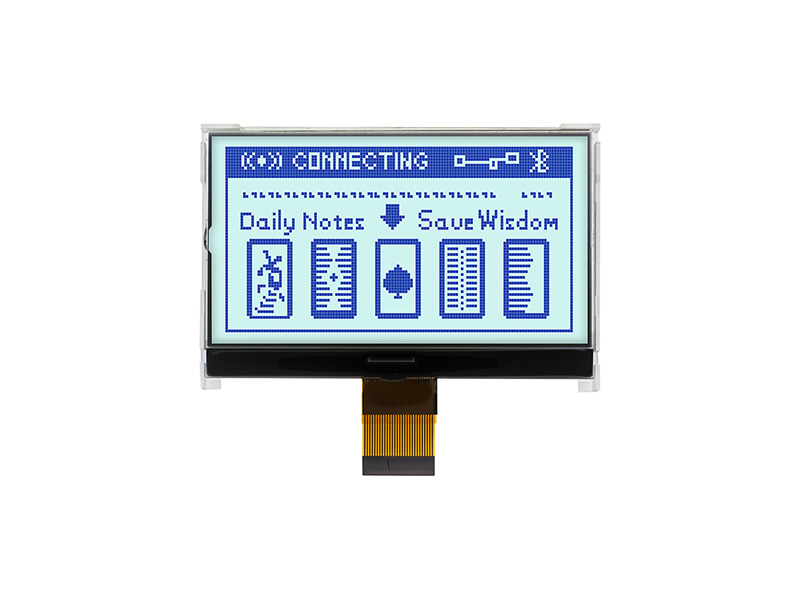

| 3.1英寸128x64 COG LCD | STN+灰底蓝字液晶显示屏 | 3.3V | Arduino HTG12864-125-11W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||

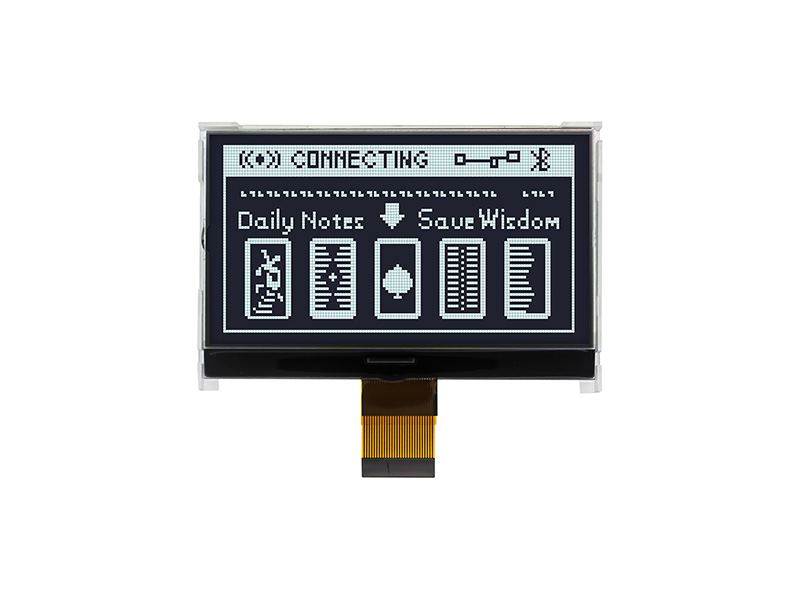

| 3.1英寸128x64黑底白字图形COG LCD | DFSTN-液晶显示屏 | 3.3V | Arduino HTG12864-125-47W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||

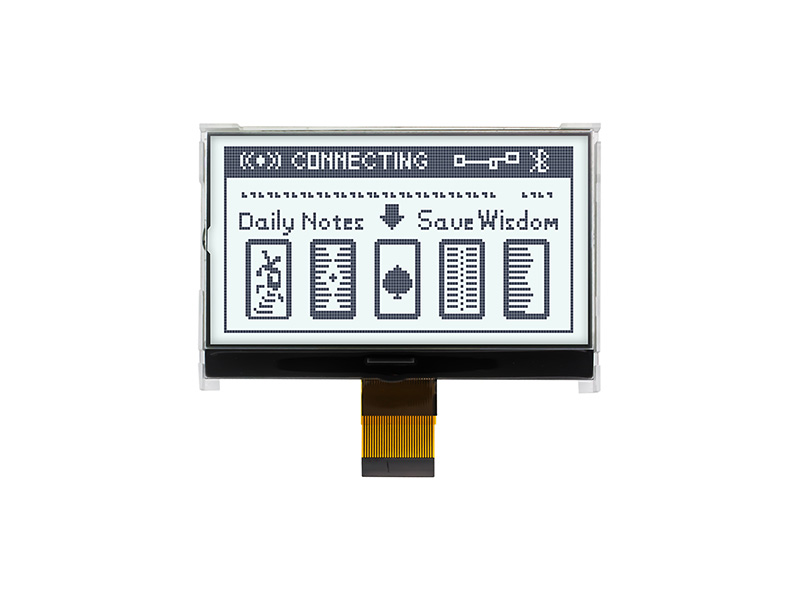

| 3.1英寸128x64白底灰字图形COG LCD | FSTN+显示屏 3.3V HTG12864-125-31W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防静电ESD 8KV | -30~80℃ | +3.3 V | ST7565P | ||
| 2.2寸128x64 图形点阵COG LCD显示屏/FSTN+红绿蓝背光显示屏/ST7567/Arduino HTG12864-20C-35S-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 红绿蓝 | FPC-28PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.2寸128x64 蓝底白字图形点阵COG LCD显示屏/STN-负/ST7567/Arduino/3.3V HTG12864-20C-25W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 黄绿 | FPC-28PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.2寸128x64 黄绿色图形点阵COG LCD显示屏/STN+/ST7567控制器/Arduino HTG12864-20C-11Y-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 黄绿 | FPC-28PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.2寸128x64 图形点阵COG LCD显示屏/STN+ 灰底蓝字/ST7567控制器/Arduino HTG12864-20C-11W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 白色 | FPC-28PIN | MCU | 防静电ESD 8KV | -20~70℃ | +3.3 V | ST7567 |
